CUTTER TEETH

STANDARD CUTTER TEETH

TEETH SELECTION is fundamentally important for optimal performance when excavating a diaphragm wall using a trench cutter. The type of tooth or chisel that performs best depends on the ground conditions at the site. Various cutting teeth and round shank chisels are available to suit the local ground conditions.


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

  • ​Available Tungsten Carbide Grade

       B-12-G / B-20-G / B-25-G

  • Holder​

​       Teeth Holder (15844)
       Insert Teeth Holder (441010)

  • Applicable Cutter​

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

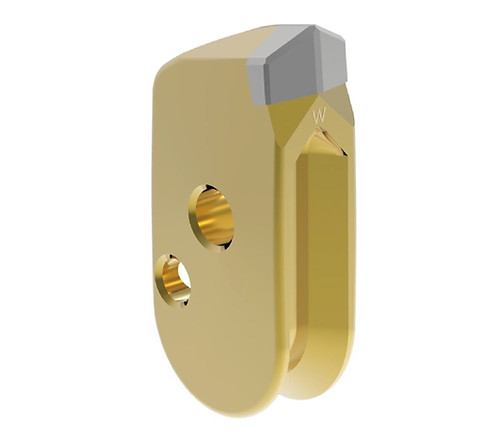

SB38 JMK (372437) / JM (18071)


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

  • ​Available Tungsten Carbide Grade
    B-12-G / B-20-G / B-25-G

  • Holder
    ​Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

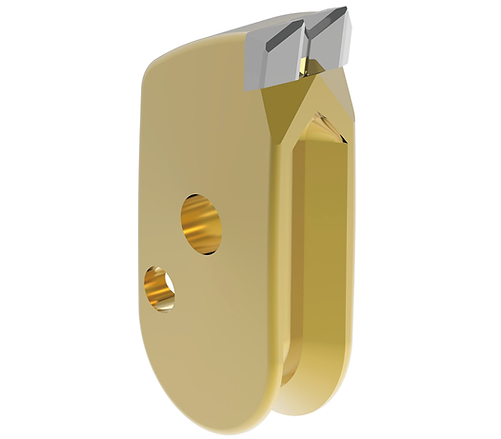

SB38 HR (416419) / SB38 WM


CUTTER

CSM (Cutter Soil Mixing) Cutter Teeth

  • Holder
    BCM 5 Teeth Holder (925428)
    BCM 10 Teeth Holder (838218)

​

​

​

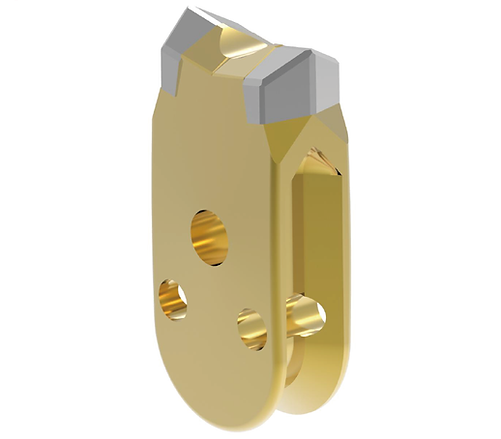

DC SB38 JMK (644296)


CUTTER

Teeth for Diaphragm wall Trench Cutter

​STANDARD BAUER TYPE

  • Holder
    Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

​

​

​

WK28 RR


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

  • Available Tungsten Carbide Grade
    B-12-G / B-20-G / B-25-G

  • Holder
    ​Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

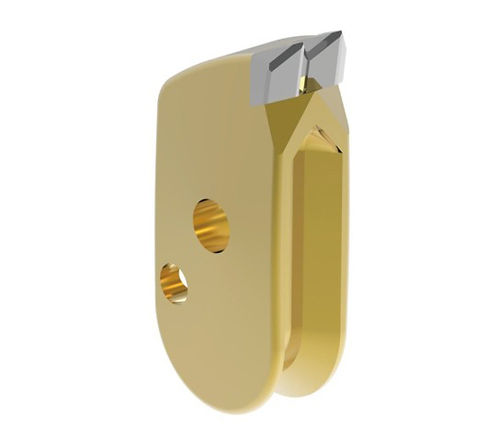

SB38 HR (416419) / SB38 WM


HOLDER

for INSERT 441010

  • Combine with Insert Teeth Holder(441010)

TEETH HOLDER FOR INSERT (441007)


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

  • ​Available Tungsten Carbide Grade
    B-12-G / B-20-G / B-25-G

  • Holder
    ​Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

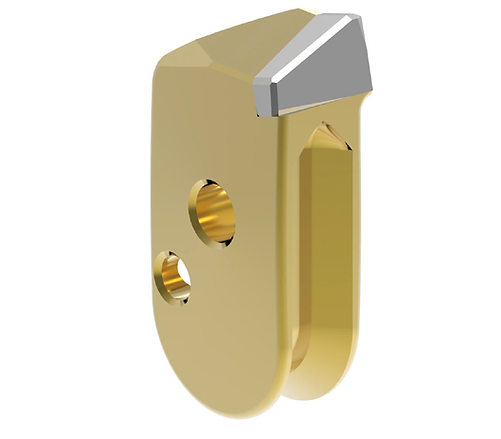

SB42 JR (94667)


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE​

  • Holder
    Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

​

​

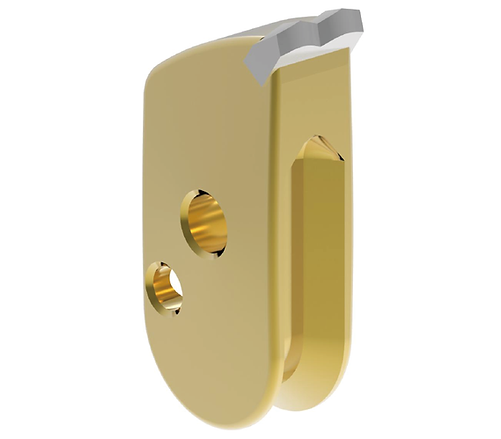

SB38 ZM (94670)


CUTTER

CSM (Cutter Soil Mixing) Cutter Teeth

  • Holder
    BCM 5 Teeth Holder (925428)
    BCM 10 Teeth Holder (838218)

​

​

​

​

DC SB38 HR (619274)


CUTTER

Teeth for Diaphragm wall Trench Cutter

​STANDARD BAUER TYPE

  • Holder
    Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

​

​

​

WK28 RL


FLAP TEETH

STANDARD CUTTING TEETH

  • 4 of Type
    Left (909881,909883)
    Right (909310,909882)

  • Consist of
    921521 Rejection Block Improved Shape 1X
    243524 Tension Busing 2X
    258201 Hexagon Screw 2X
    779789 Thrust Washer 2X

  • Applicable cutter BC30 BC32 BC35 BC40

FLAP TEETH


HOLDER

Standard Bauer Teeth Holder

  • For All Kinds of Standard Bauer Cutter Teeth

​

​

TEETH HOLDER (15844)


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

  • ​Available Tungsten Carbide Grade
    B-12-G / B-20-G / B-25-G

  • Holder
    ​Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

SB42 JL (94668)


CUTTER

CSM (Cutter Soil Mixing) Cutter Teeth

  • Holder
    BCM 5 Teeth Holder (925428)
    BCM 10 Teeth Holder (838218)

​

​

​

​

​

​

DC SB42 JLR (913234)


CUTTER

Teeth for Diaphragm wall Trench Cutter

​STANDARD BAUER TYPE

  • Holder
    Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

WK28 RM


CUTTER

Teeth for Diaphragm wall Trench Cutter

STANDARD BAUER TYPE

Super performance on Clay Site

Width : 46

Extra 2 Tungsten Carbide on the top body

  • Holder
    ​Teeth Holder (15844)
    Insert Teeth Holder (441010)

  • Applicable Cutter
    BC30, BC32, BC40, BC50
    XCMG, Hydromill, Hydrofraise

SB46 CLAY TEETH


HOLDER

Standard Cutter Teeth

  • Combine with Teeth Holder for Insert (441007)

​

​

​

​

​

​

​

​

INSERT TEETH HOLDER (441010)


HOLDER

Korean Exclusive Type

  • Welding holder for worn Teeth Holder (15844)

​

​

WELDING HOLDER


ROUND SHANK CHISEL

Wear Parts Drilling Tools - Diaphragm wall / Drill String

TEETH SELECTION is fundamentally important for optimal performance when excavating a diaphragm wall using a trench cutter.

The type of tooth or chisel that performs best depends on the ground conditions at the site.

Various cutting teeth and round shank chisels are available to suit the local ground conditions.

WK 38(ΦShaft) - 60(ΦBody) - WR(with Ring) - 22(ΦTip) X 33(Tip Length of Tungsten) - 134 (Total Length / mm)

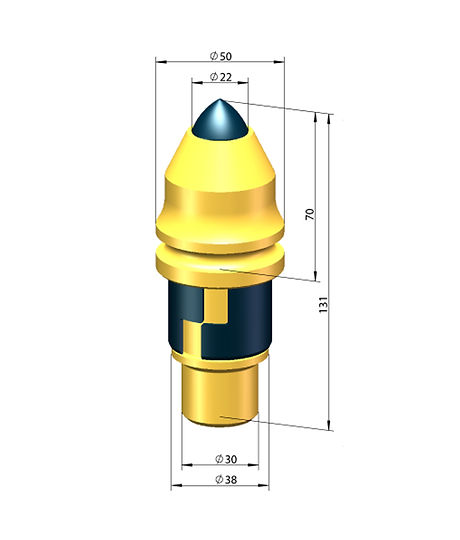

WK-38-50-WR-22-131(B47K22H)

Cutter Teeth Round Shank Chisel

  • Holder

​       Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

       Other Auger


WK-38-60-WR-22-135
/ RSM-C 22X27 (849546)

Cutter Teeth Round Shank Chisel

  • Holder

​       Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise


WK-38-60-WR-20-135
(B47K20H60)

Cutter Teeth Round Shank Chisel

  • Holder

​      Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

WK-38-50-WR-19-131(B47K19H)

Teeth for Diaphragm wall Trench Cutter

  • Holder​

       Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

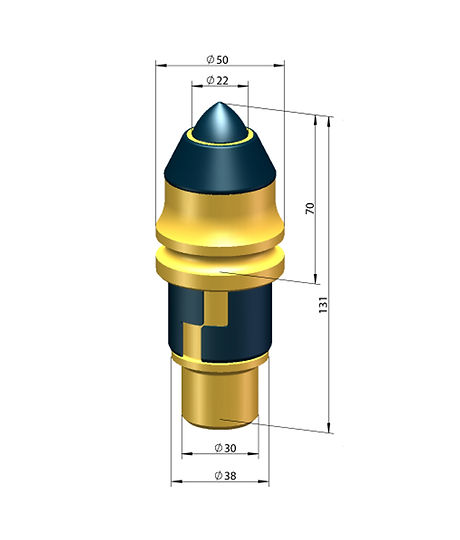

WK-38-50-WR-22-131
(B47K22H-PF)

Cutter Teeth Round Shank Chisel

Plasma Hardfacing

  • Holder​

       Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

WK-38-50-WR-22-131
(B47K22H-HF)

Cutter Teeth Round Shank Chisel

Plasma Hardfacing

  • Holder​

​       Bush Round Shank Chisel (919584)

​

  • Applicable Cutter

       BC30, BC32, BC40, BC50
       XCMG, Hydromill, Hydrofraise

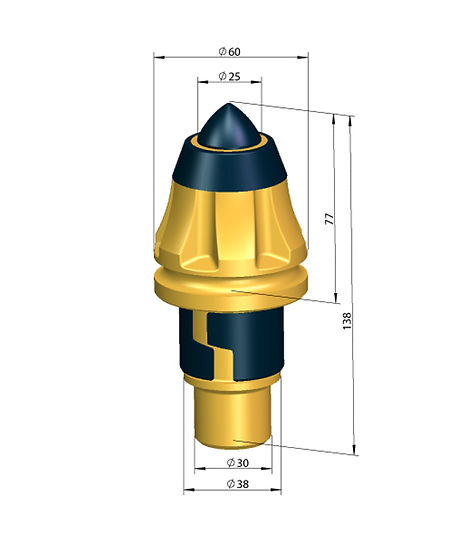

WK-38-60-WR-25-138-PL

Cutter Teeth Round Shank Chisel

Plasma Hardfacing

Other Auger

U47-22

Cutter Teeth Round Shank Chisel

Other Auger

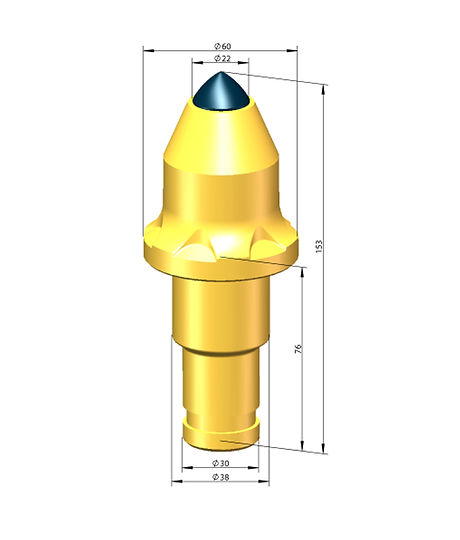

U47-22 - HARDFACING

Cutter Teeth Round Shank Chisel
Hardfacing

Other Auger

FLAP TEETH

ROUND SHANK CHISEL

  • 4 of Type

       Left (837124,837108)

       Right (837123,837106)


  • Consist of

       921521 Rejection Block Improved Shape 1X

       243524 Tension Busing 2X

       258201 Hexagon Screw 2X

       919584 Bush Round Shank Chisel 3X

       779789 Thrust Washer 2X

​

  • Applicable cutter BC30 BC32 BC35 BC40


BUSH (919584)

Round Shank Chisel

Bush for Round Shank Chisel Flap Teeth and other holder
